# Process Profiles

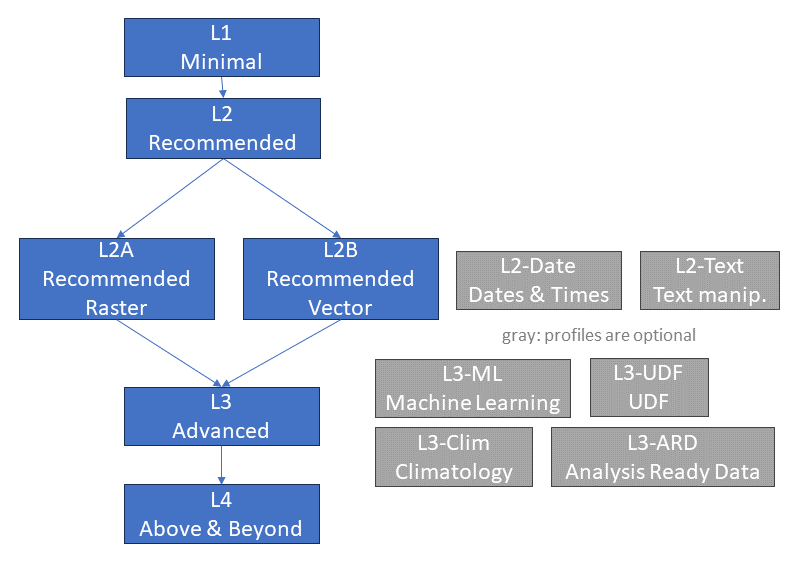

The following image provides an overview of the openEO Processes profiles. The minimal profile that allows an openEO implementation to be called "openEO-compliant" is L1 Minimal.

The hierarchy of openEO Processes profiles: L1 Minimal -> L2 Recommended (with sub-profiles) -> L2A/B Raster/Vector -> L3 Advanced (with sub-profiles) -> L4 Above and Beyond
An overview of the openEO Processes profiles.
  • L1 Minimal ensures that the openEO implementation has a minimal set of functionality which allow users to execute basic use-cases.
  • L2 Recommended add functionality that we recommend to be available so that users can more effectively make use of the openEO implementation.
  • L3 Advanced allows users to execute more advanced use cases.
  • L4 Above and Beyond adds very specific and complex requirements for very specific and highly advanced use cases.

There are various sub-profiles in L2 (e.g., L2-Date) and L3 (e.g., L3-ML) that add a specific set of functionalities centered around specific needs such as date/time manipulation or execution of machine learning workflows.

In the following chapter you can find a list of requirements per profile.

# Requirements per Profile

Note

Missing experimental processes should (by default) lead to a "warning", but not lead to a rejection of that level in openEO.

# L1: Minimal

  • absolute
  • add
  • and
  • apply
  • apply_dimension
    • All dimensions that your datacubes can include are supported - x and y can usually be excluded
  • arccos
  • arcsin
  • arctan
  • array_concat
  • array_create
  • array_element
  • between
  • ceil
  • clip
  • constant
  • cos
  • divide
  • e
  • eq
  • exp
  • first
  • floor
  • gt
  • gte
  • int
  • last
  • ln
  • load_collection
    • Parameter temporal_extent: All temporal formats are supported (date-time and date)
  • log
  • lt
  • lte
  • max
  • mean
  • median
  • min
  • mod
  • multiply
  • neq
  • not
  • or
  • pi
  • power
  • product
  • quantiles
  • reduce_dimension
    • Parameter reducer: At least all processes (up to L1) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
    • Parameter dimension: All dimensions that your datacubes can include are supported - x and y are excluded as they are handled with reduce_spatial
  • round
  • save_result
  • sd
  • sgn
  • sin
  • sqrt
  • subtract
  • sum
  • tan
  • variance
  • add_dimension
    • Parameter name: All suitable dimensions are supported
  • aggregate_temporal
    • Parameter reducer: At least all processes (up to the level of this requirement) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
    • Parameter reducer: Supports access to labels in the callback
    • Parameter dimension: All suitable dimensions are supported
  • aggregate_temporal_period
    • Parameter reducer: At least all processes (up to the level of this requirement) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
    • Parameter reducer: Supports access to labels in the callback
    • Parameter dimension: All suitable dimensions are supported
    • Parameter period: enum reflects implemention (all values are supported)
  • all
  • any
  • apply_dimension
    • Parameter process: Supports access to labels in the callback
  • arcosh
  • arctan2
  • array_element
    • Supports labeled arrays
  • array_find
  • arsinh
  • artanh
  • cosh
  • count
  • dimension_labels
    • Parameter dimension: All suitable dimensions are supported
  • drop_dimension
    • Parameter name: All suitable dimensions are supported
  • extrema
  • filter_bbox
  • filter_temporal
    • Parameter dimension: All suitable dimensions are supported
    • All temporal formats are supported (date-time and date)
  • if
  • inspect (experimental)
    • Parameter level: enum reflects implemention (all values are supported)
  • is_nan
  • is_nodata
  • is_valid
  • linear_scale_range
  • nan (experimental)
  • normalized_difference
  • reduce_dimension
    • Parameter reducer: At least all processes (up to L2) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
    • Parameter reducer: Supports access to labels in the callback
  • rename_dimension
  • rename_labels
    • Parameter dimension: All dimensions that your datacubes can include are supported - x and y can usually be excluded
  • sinh
  • sort
  • tanh
  • xor
  • aggregate_spatial
    • Parameter reducer: At least all processes (up to the level of this requirement) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
  • apply_kernel
    • Parameter border: enum reflects implemention (all values are supported)
  • filter_bands
    • Supports filtering by band name
  • filter_spatial
  • load_collection
    • Parameter bands: Supports filtering by band name and common name
  • mask
  • mask_polygon
  • resample_spatial
    • Parameter method: enum reflects implemention (all values are supported)
  • filter_vector (experimental)
  • vector_buffer (experimental)
  • vector_reproject (experimental)

# L2-Date: Date & Time manipulation

  • date_between (experimental)
  • date_difference (experimental)
  • date_shift (experimental)

# L2-Text: Text manipulation

  • text_begins
  • text_concat (text_merge)
  • text_contains
  • text_ends

# L3: Advanced

  • add_dimension
    • Parameter type: enum reflects implemention (all values are supported)
  • aggregate_spatial
    • Parameter reducer: Supports access to labels in the callback
    • Parameter context: is supported and passed to the callback
  • aggregate_spatial_window (experimental)
  • aggregate_temporal
    • Parameter context: is supported and passed to the callback
    • All temporal formats are supported (date-time, date and time)
  • aggregate_temporal_period
    • Parameter context: is supported and passed to the callback
  • apply
    • Parameter process: At least all processes (up to the level of this requirement) in the categories comparison, logic and math can be used (also in a chain of processes).
    • Parameter context: is supported and passed to the callback
  • apply_dimension
    • Parameter process: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
    • Parameter context: is supported and passed to the callback
  • apply_neighborhood
    • Parameter process: Supports access to labels in the callback
    • Parameter context: is supported and passed to the callback
    • Parameter data: All listed label types supported.
    • Parameter size / overlap: Units m, px and null are supported
  • array_append
    • Supports labeled arrays
  • array_apply
    • Parameter process: Supports access to labels in the callback
    • Parameter context: is supported and passed to the callback
    • Supports labeled arrays
  • array_concat
    • Supports labeled arrays
  • array_contains
  • array_create_labeled (experimental)
  • array_filter
    • Parameter context: is supported and passed to the callback
    • Supports labeled arrays
  • array_find_label (experimental)
  • array_interpolate_linear
    • Supports labeled arrays
  • array_labels
  • array_modify (experimental)
    • Supports labeled arrays
  • cloud_detection (experimental)
  • count
    • Parameter context: is supported and passed to the callback
  • create_data_cube (create_raster_cube)
  • cummax (experimental)
  • cummin (experimental)
  • cumproduct (experimental)
  • cumsum (experimental)
  • filter_bands
    • Supports filtering by common name
  • filter_labels (experimental)
    • Parameter context: is supported and passed to the callback
    • Parameter dimension: All suitable dimensions are supported
  • flatten_dimensions (experimental)
  • is_infinite (experimental)
  • load_collection
    • Parameter properties: Supports querying by queryables defined via the API.
  • load_geojson (experimental)
  • load_stac (load_result) (experimental)
    • Supports loading from STAC API - Features.
    • Supports loading from STAC API - Item Search.
    • Supports loading from static STAC.
    • Parameter temporal_extent: All temporal formats are supported (date-time and date)
    • Parameter bands: Supports filtering by band name and common name
  • merge_cubes
    • Parameter context: is supported and passed to the callback
  • ndvi
    • Supports common names as band names
  • order
  • rearrange
  • reduce_dimension
    • Parameter context: is supported and passed to the callback
  • reduce_spatial (experimental)
    • Parameter reducer: At least all processes (up to the level of this requirement) in the category reducer that accept an array as input and return a single value as output can be used (also in a chain of processes).
    • Parameter reducer: Supports access to labels in the callback
    • Parameter context: is supported and passed to the callback
  • resample_cube_spatial
    • Parameter method: enum reflects implemention (all values are supported)
  • resample_cube_temporal
    • Parameter dimension: All suitable dimensions are supported
  • resample_spatial
    • Parameter align: enum reflects implemention (all values are supported)
  • trim_cube
  • unflatten_dimensions (experimental)
  • vector_to_random_points (experimental)
  • vector_to_regular_points (experimental)

# L3-ML: Machine Learning

  • fit_curve (experimental)
  • fit_regr_random_forest
  • load_ml_model (experimental)
  • predict_curve (experimental)
  • save_ml_model (experimental)

# L3-UDF: User-Defined Functions

  • run_udf
    • Parameter context: is supported and passed to the callback
  • run_udf_externally (experimental)

# L3-Clim: Cimatology

  • anomaly
  • climatological_normal

# L3-ARD: Analysis-Ready Data

  • ard_normalized_radar_backscatter (experimental)
    • has been tested on > 100x100km at 10m resolution (or equivalent)
    • Custom parameters are provided via the options parameter
  • ard_surface_reflectance (experimental)
    • Parameter atmospheric_correction_method: enum reflects implemention (all values are supported)
    • Parameter cloud_detection_method: enum reflects implemention (all values are supported)
    • Custom parameters are provided via the atmospheric_correction_options and/or cloud_detection_options parameters

# L4: Above and Beyond

  • aggregate_spatial
    • Parameter reducer: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • aggregate_temporal
    • Parameter reducer: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • aggregate_temporal_period
    • Parameter reducer: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • apply_neighborhood
    • Parameter process: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • apply_polygon (chunk_polygon) (experimental)
  • array_apply
    • Parameter process: At least all processes (up to the level of this requirement) in the categories comparison, logic and math can be used (also in a chain of processes).
  • atmospheric_correction (experimental)
    • Parameter method: enum reflects implemention (all values are supported)
    • Custom parameters are provided via the options parameter
  • filter_bands
    • Supports filtering by wavelength
  • filter_bbox
    • Parameter extent: Supports filtering by base/height
  • load_collection
    • Parameter spatial_extent: Supports filtering by base/height
  • load_stac (load_result) (experimental)
    • Parameter spatial_extent: Supports filtering by base/height
  • load_uploaded_files (experimental)
  • load_url (experimental)
  • reduce_dimension
    • Parameter reducer: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • reduce_spatial (experimental)
    • Parameter reducer: At least all processes (up to the level of this requirement) in the categories array, comparison, logic and math can be used (also in a chain of processes).
  • sar_backscatter (experimental)
    • Parameter coefficient: enum reflects implemention (all values are supported)
    • Custom parameters are provided via the options parameter
