# Architecture

The openEO API defines a language how clients communicate to back-ends in order to analyze large Earth observation datasets. The API will be implemented by drivers for specific back-ends. Some first architecture considerations are listed below.

  1. The openEO API is a contract between clients and back-ends that describes the communication only
  2. Each back-end runs its own API instance including the specific back-end driver. There is no API instance that runs more than one driver.
  3. Clients in R, Python, and JavaScript connect directly to the back-ends and communicate with the back-ends over HTTPS according to the openEO API specification.
  4. API instances can run on back-end servers or additional intermediate layers, which then communicate to back-ends in a back-end specific way.
  5. Back-ends may add functionality and extend the API wherever there is need.
  6. There will be a central back-end registry service (openEO Hub), to allow users to search for back-ends with specific functionality and or data.
  7. The openEO API may define profiles in order to group specific functionality.

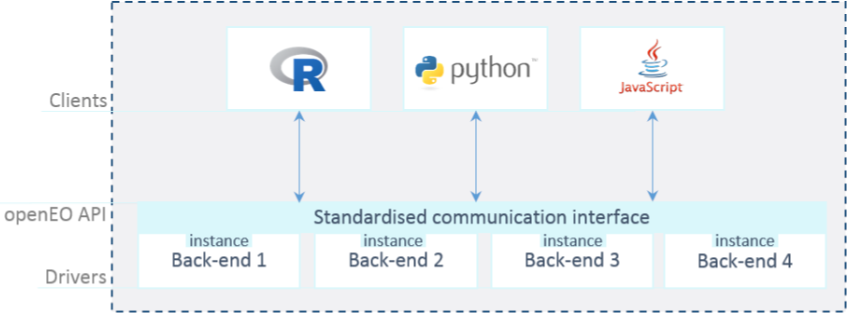

Architecture - openEO API shown in dark blue

# Microservices

To simplify and structure the development, the API is divided into a few microservices.

Microservice Description
Capabilities This microservice reports on the capabilities of the back-end, i.e. which API endpoints are implemented, which authentication methods are supported, and whether and how UDFs can be executed at the back-end.
EO Data Discovery Describes which collections are available at the back-end.
Process Discovery Provides services to find out which processes a back-end provides, i.e., what users can do with the available data.
Data Processing Organizes and manages data processing on the back-end, either as synchronous on-demand computation or batch jobs.
File Storage Organizes and manages user-uploaded files.
User-Defined Processes Organizes and manages user-defined processes (process graphs).
Secondary Services External web services to access data and job results such as a OGC WMTS service.
Account Management User management, accounting and authentication.
UDF Runtime Execution of user-defined functions, not part of the Core API. See the UDF documentation for more information.
